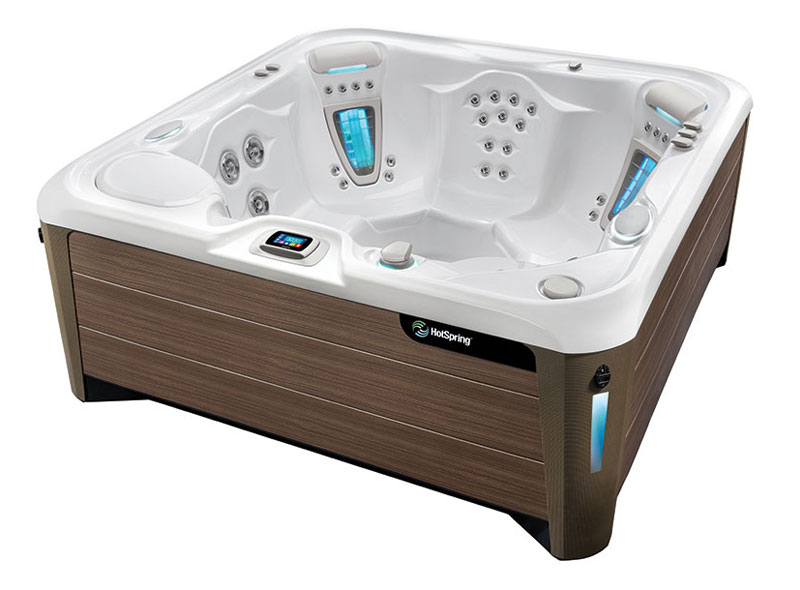

VANGUARD®
6 adults

DRAWS A CROWD. WORKS THE ROOM.

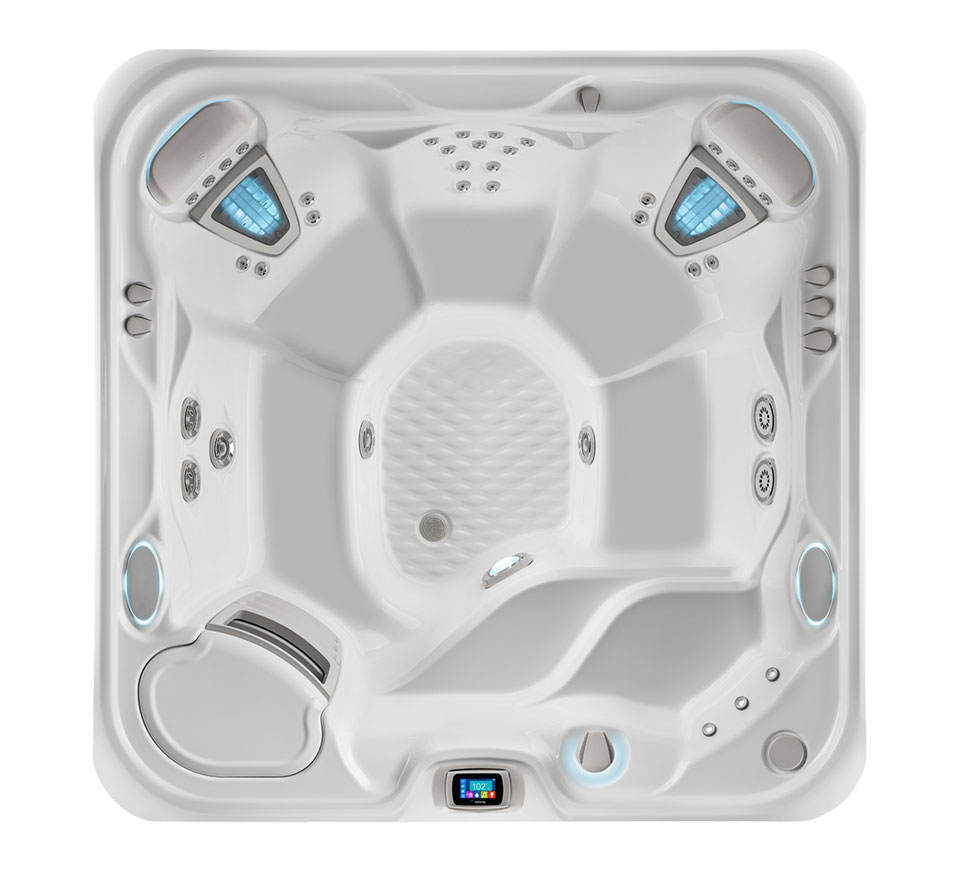

The best seat in the house? That’s every seat in the VANGUARD. Open and spacious, this family-friendly spa fits six with plenty of leg room.

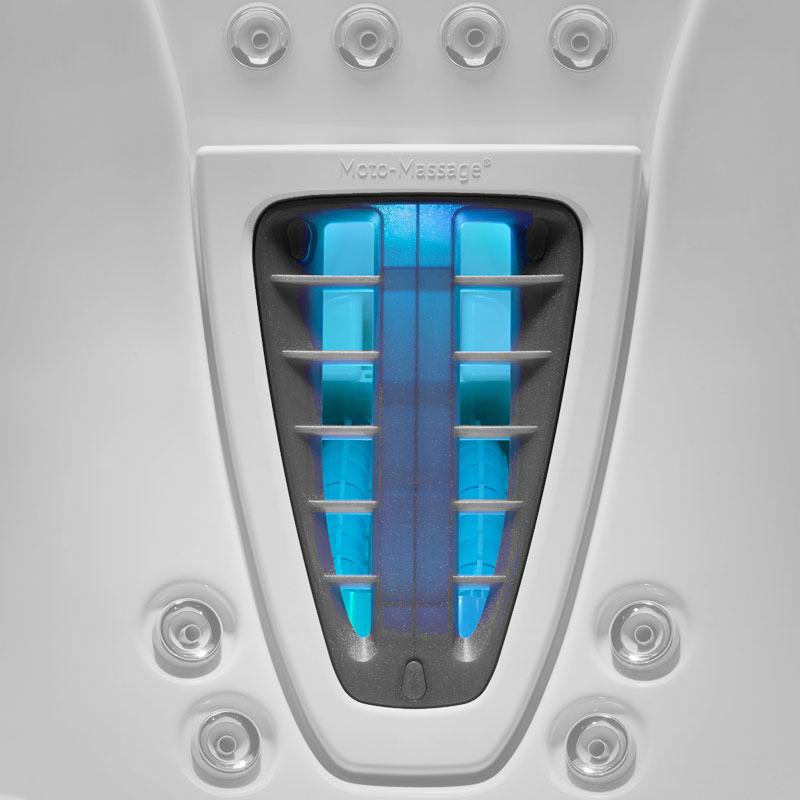

A full-body massage awaits you with two seats featuring our patented Moto-Massage® DX jets, plus other targeted jet groups that soothe your neck, shoulders, back and feet..

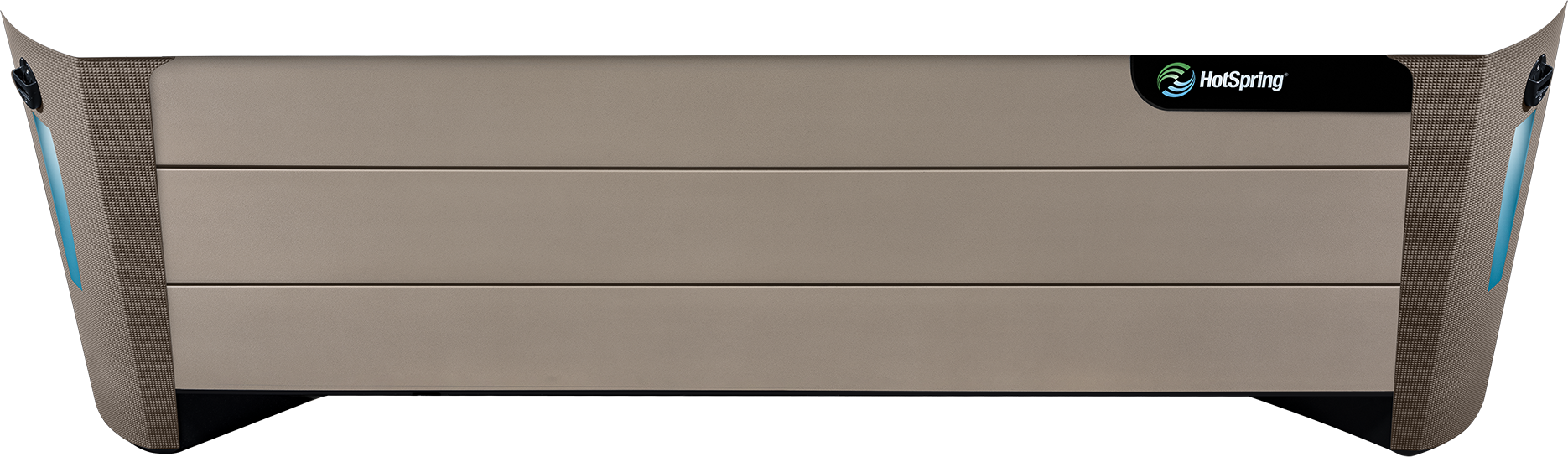

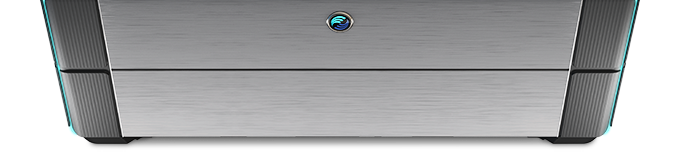

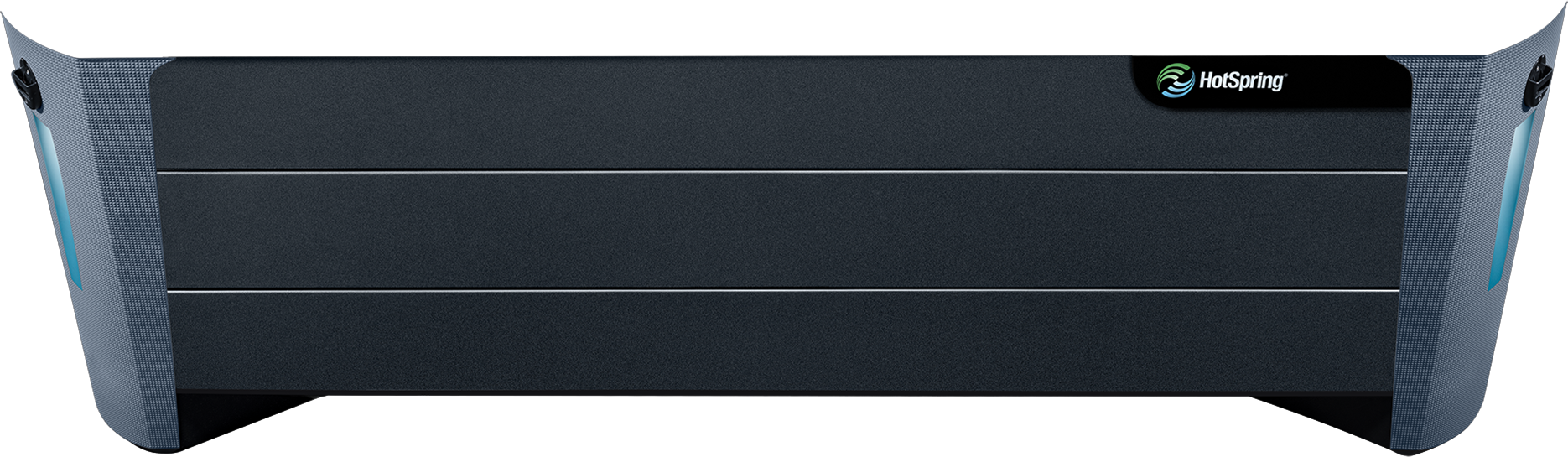

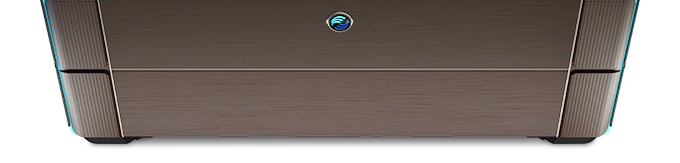

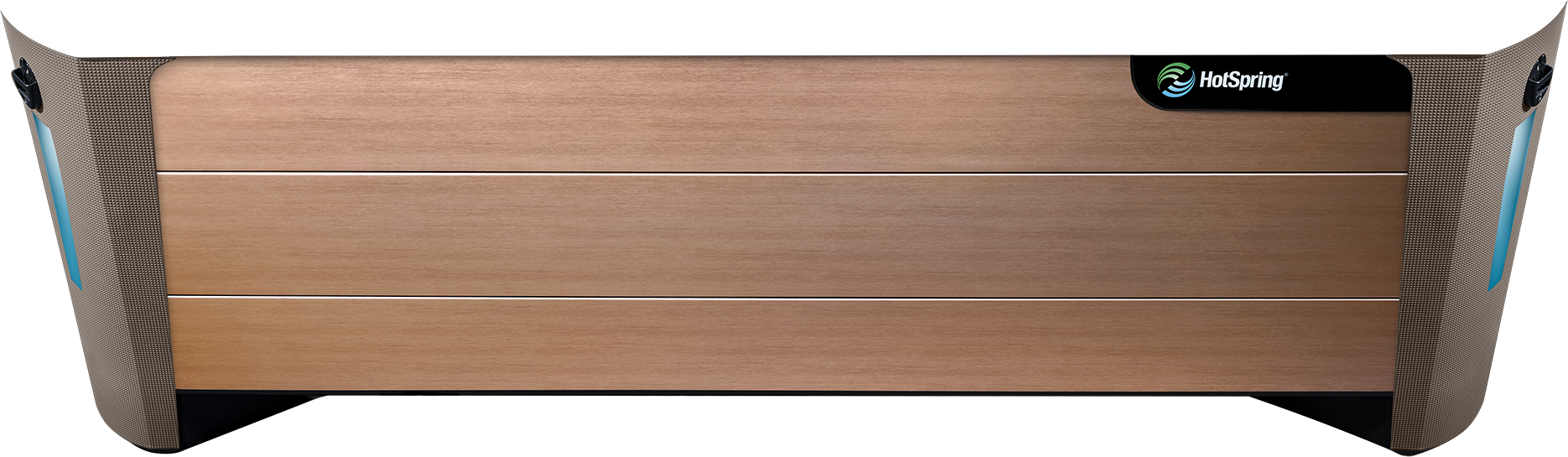

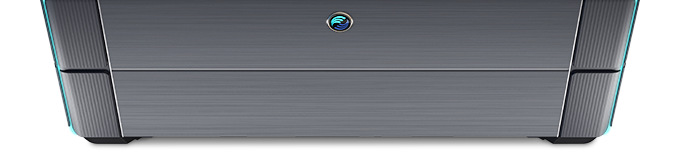

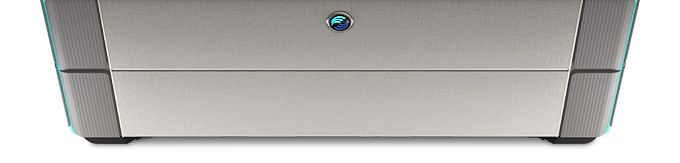

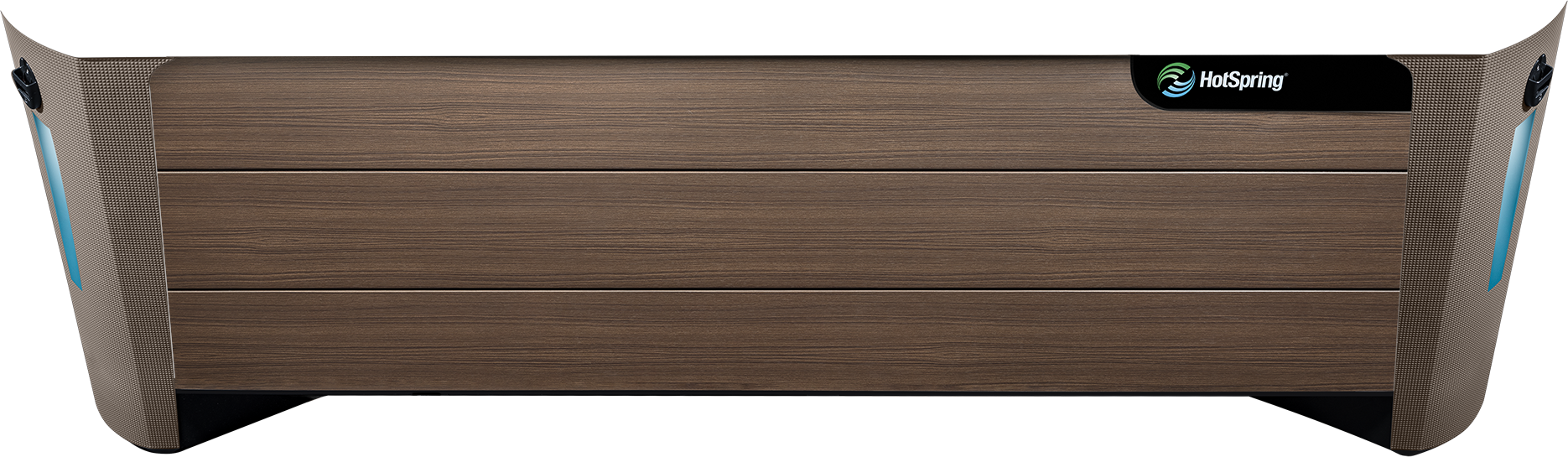

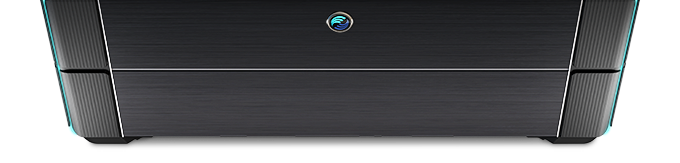

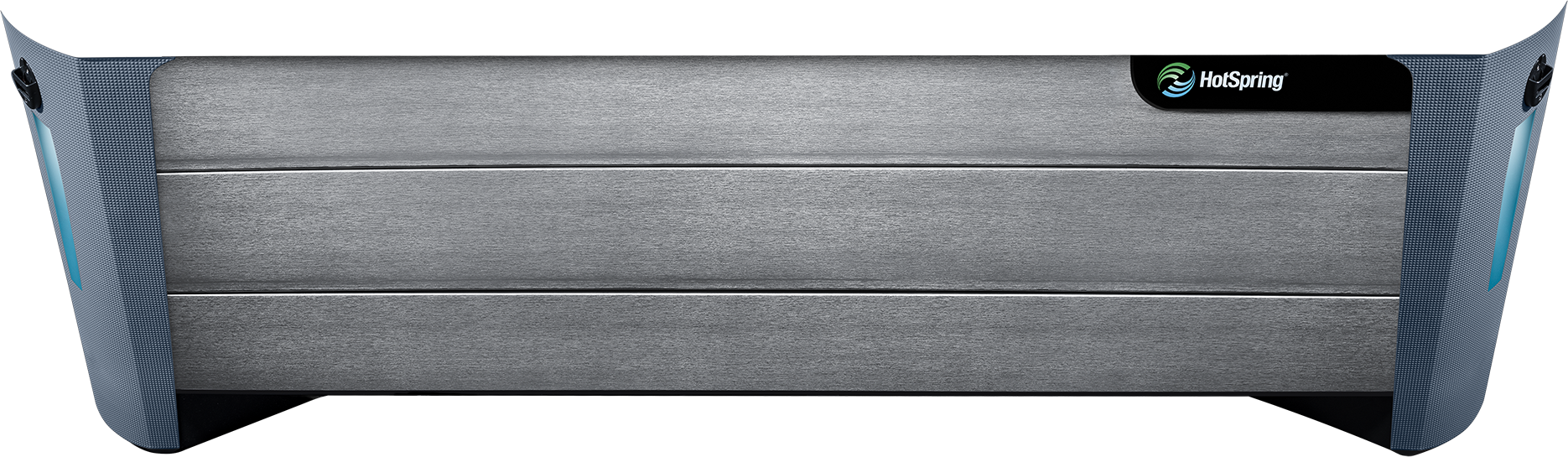

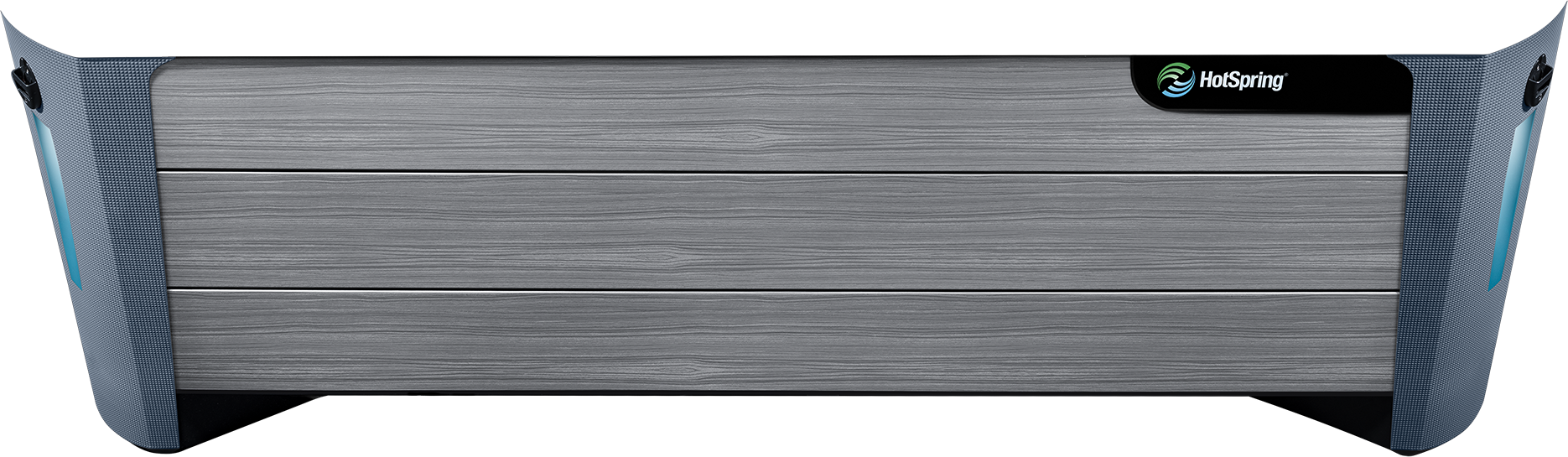

CABINET

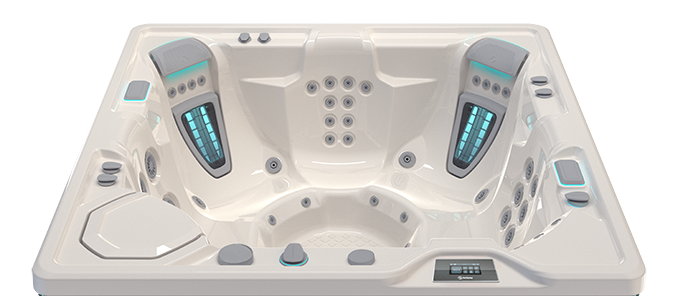

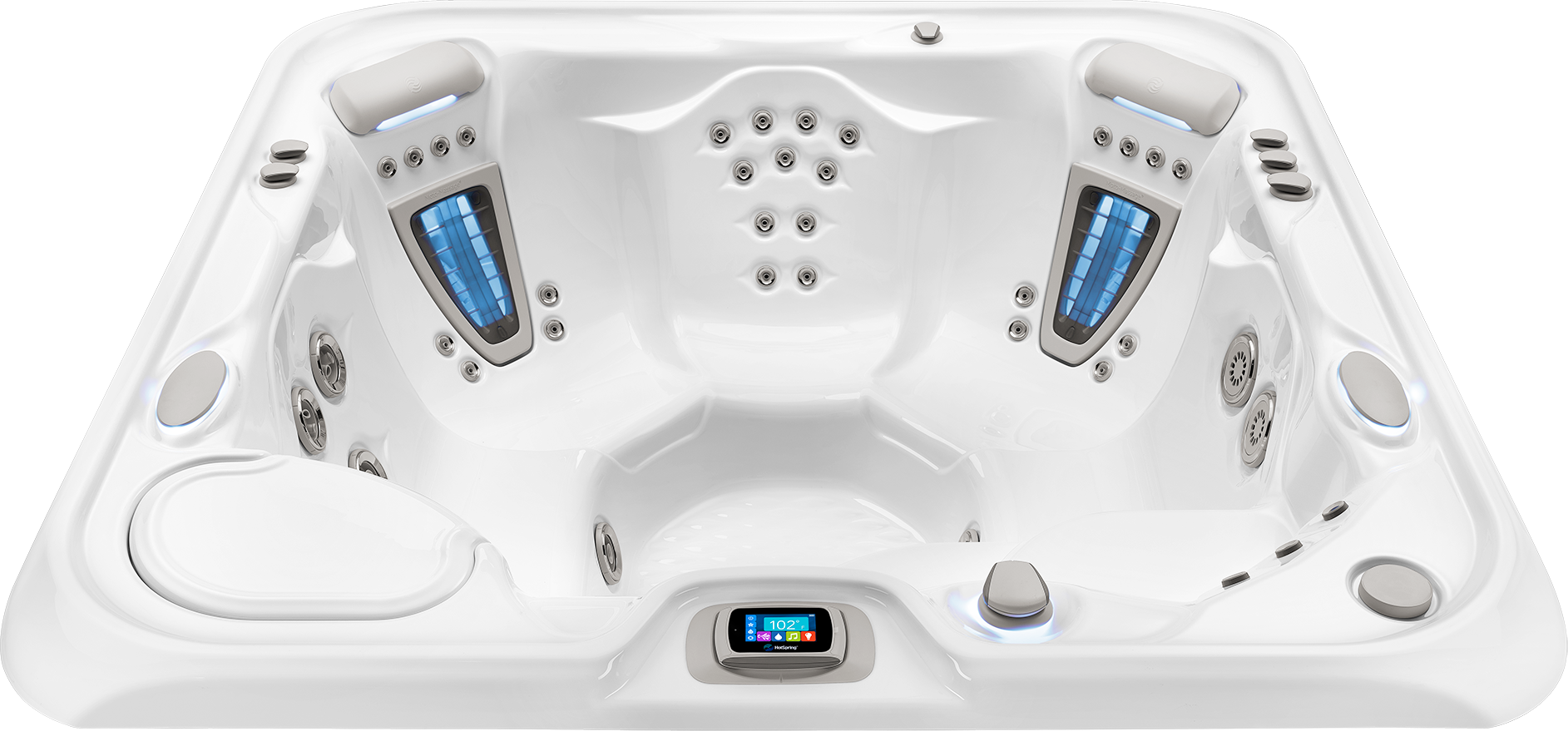

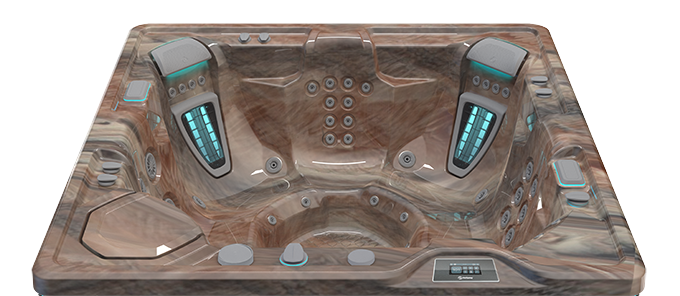

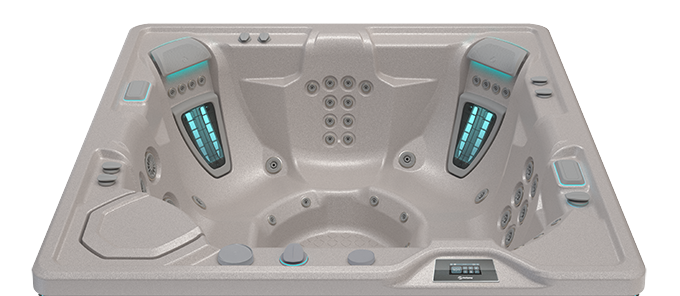

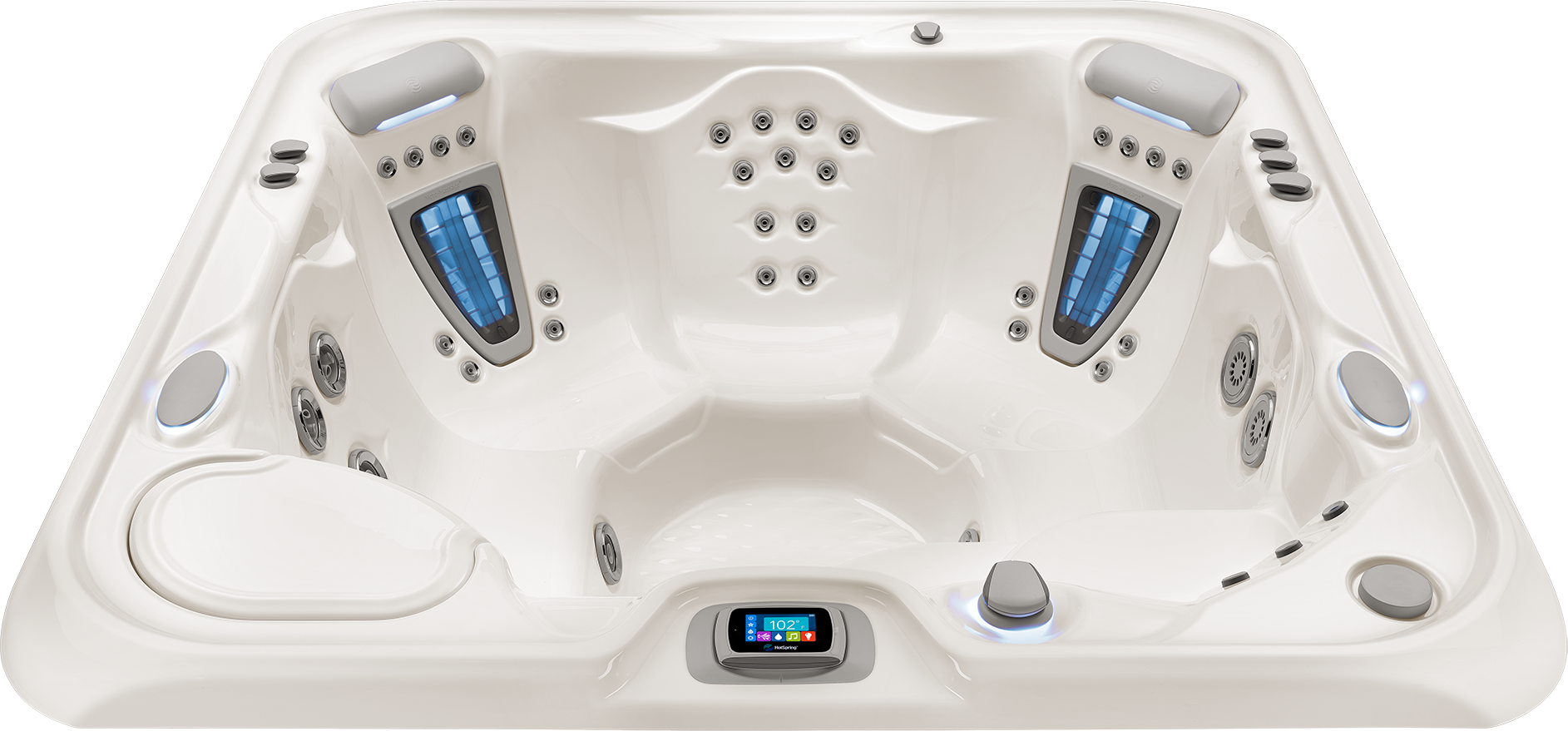

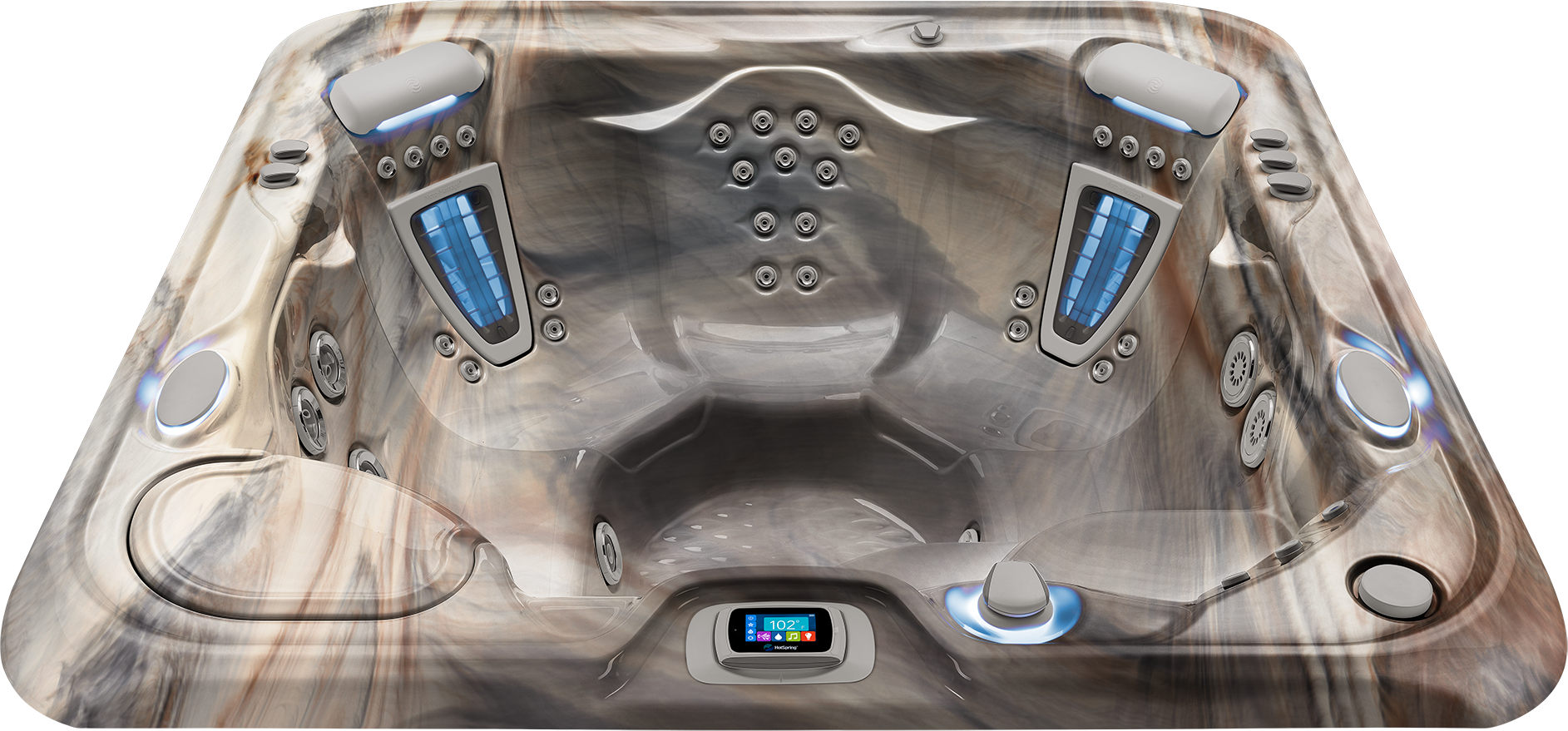

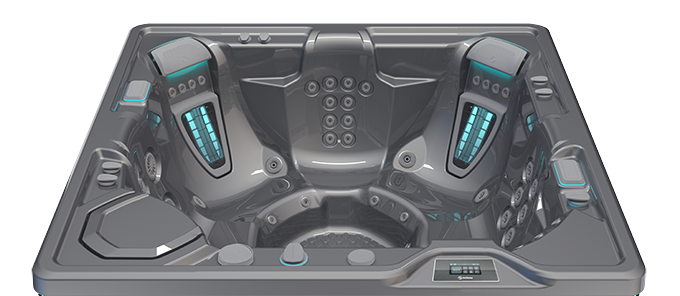

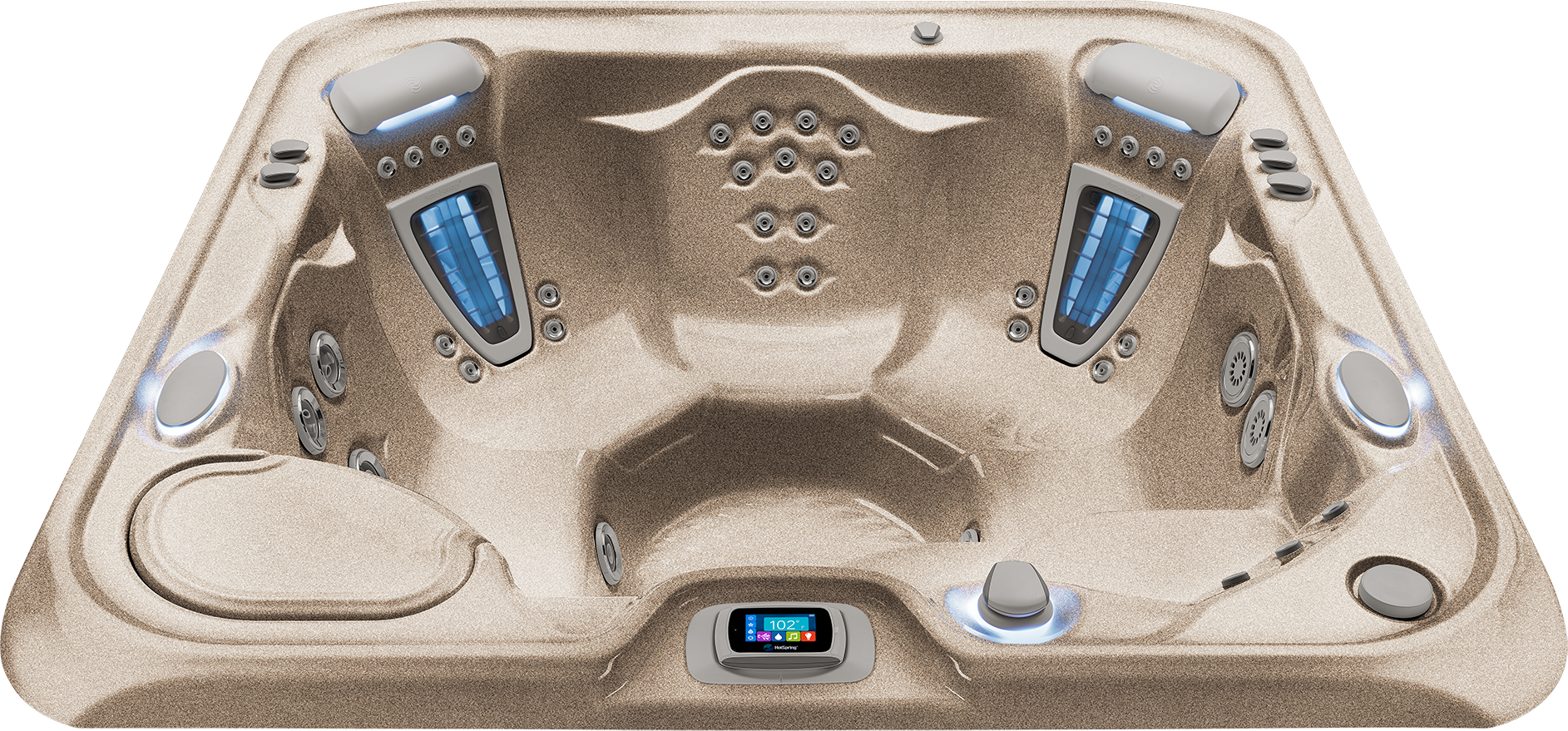

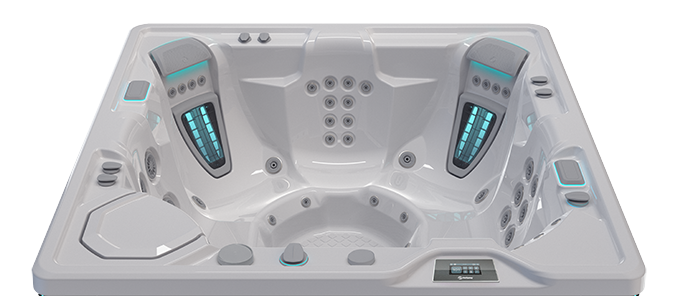

SHELL




HYDROMASSAGE

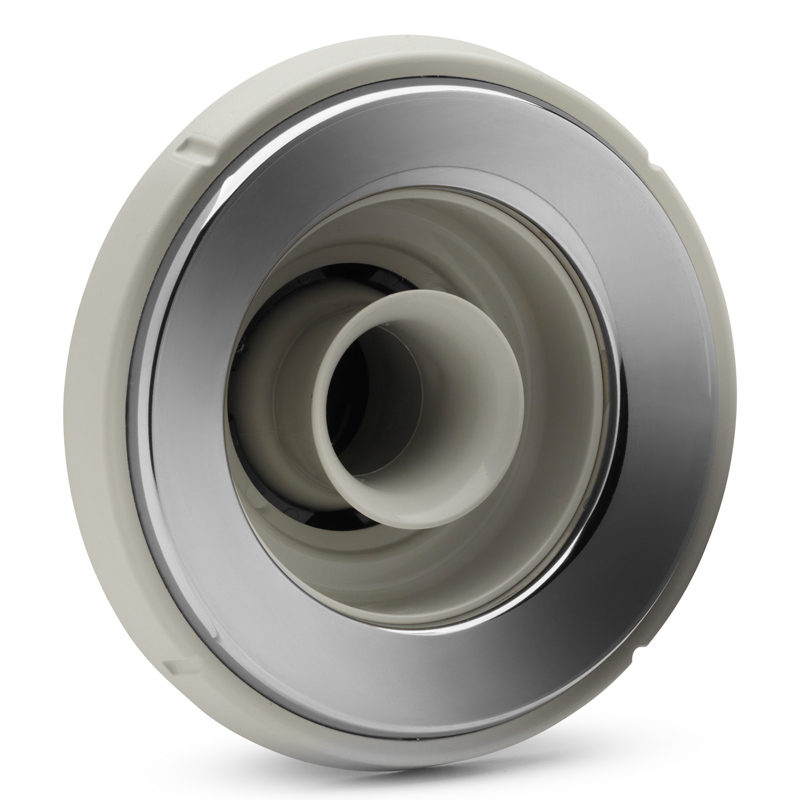

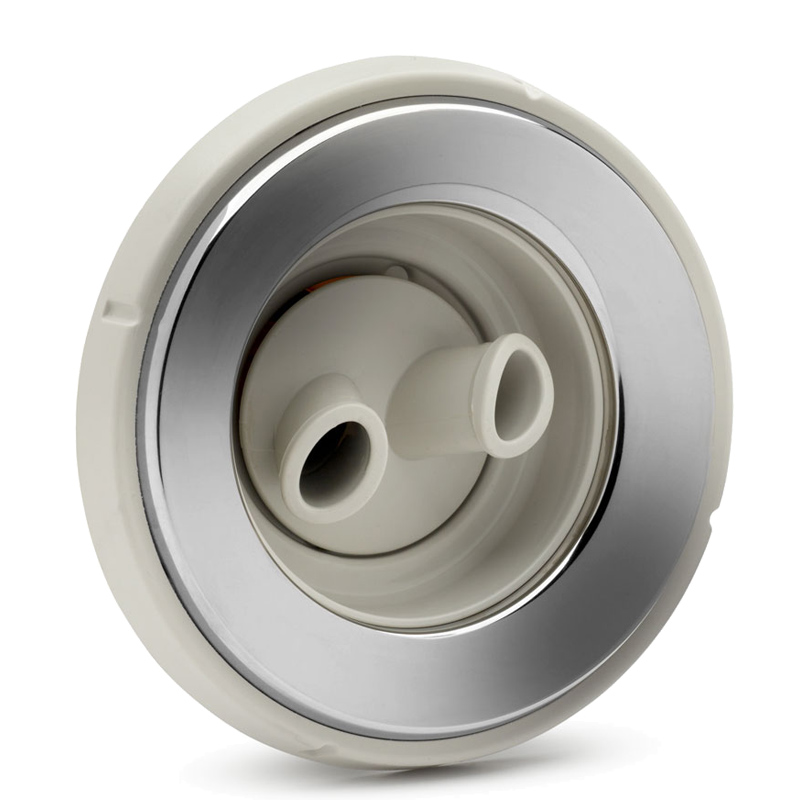

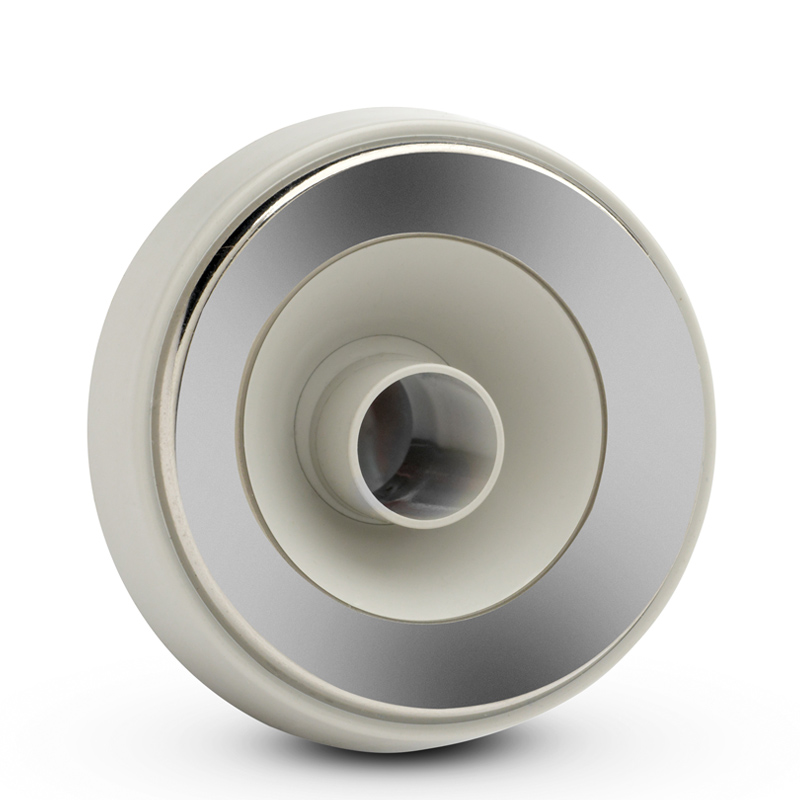

Revolutionary Jet Systems

Revolutionary Jet Systems

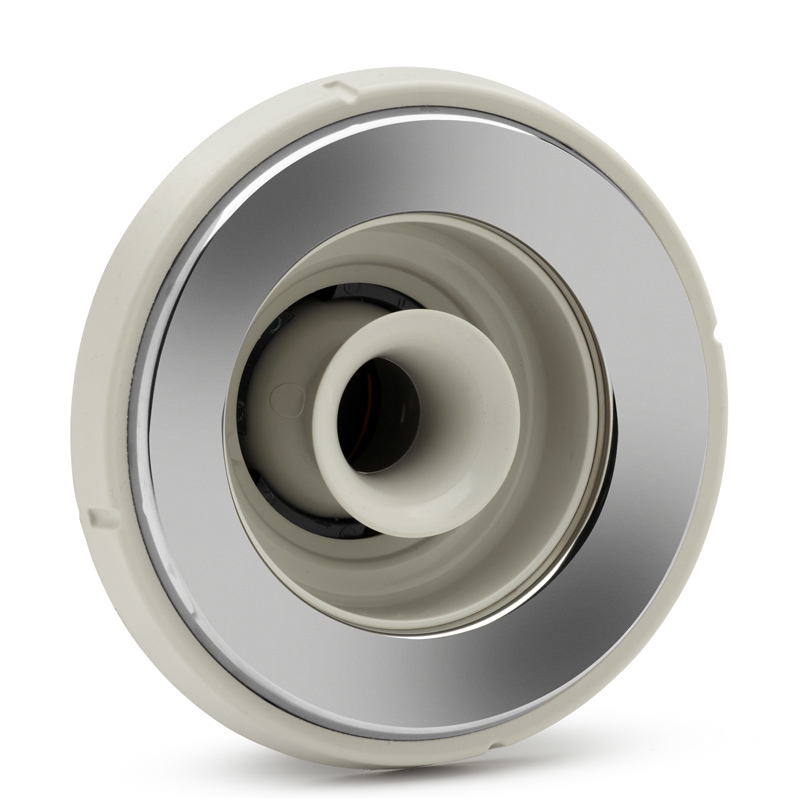

Each spa includes up to seven unique jet types and at least one Moto-Massage DX jet. But what makes Hot Spring® spas special is our 40-plus years of hydrotherapy expertise. The result is a distinctive jetting experience with the right amount of pressure and massage targeted for different muscle groups.

Revolutionary Jet Systems
ENERGY

Super Energy Efficient

Super Energy Efficient

Your spa will be there – hot and ready – when you need it. Our comprehensive EnergySmart™ system, uses a series of innovations to keep spa water at your desired temperature while keeping energy costs to a minimum.

Super Energy Efficient
WATER CARE

Crystal clear water

Cleaner Water Made Easy

Clear, clean water is essential for a great spa experience. Every spa in the Highlife Collection includes our best water care technologies and is built ready to use our proprietary FreshWater® Salt System to help ensure your water is at its best.

Crystal clear water

SPECS VANGUARD®

Seating Capacity : 6 Adults
Dimensions :
7’3” x 7’3” x 36”/ 2.20m x 2.20m x .91m
Water Capacity : 335 gallons/1,275 liters
Weight: 695 lbs./315 kg dry; 4,540 lbs./2,070 kg filled*

Hot Tub Jets (38)
(w/ Stainless Steel Trim)

Water Features BellaFontana® with 3 illuminated arcs of water
Lighting System Luminescence® multi-colour four-zone
Control System IQ 2020® with LCD control panel 230v/50amp, 60Hz
Heater Titanium No-Fault®, 230v, 50 Hz, 1500w
Jet Pump 1 Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 8000; One-speed, 2.0 HP Continuous Duty, 4.0 HP Breakdown Torque
Circulation Pump SilentFlo 5000® for quiet, continuous filtration
Water Care Systems (Optional) Freshwater® Ozone System
  Freshwater® Salt System
Effective Filtration Area 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration
Vinyl Cover 3.5” to 2.5” tapered, 2 lb. density foam core, withhinge seal in Chocolate or Smoke
Electrical connection Single-phase 230V/20A or Three-phase 400V/13A
* Includes water and 6 adults weighing 175 lbs. each
