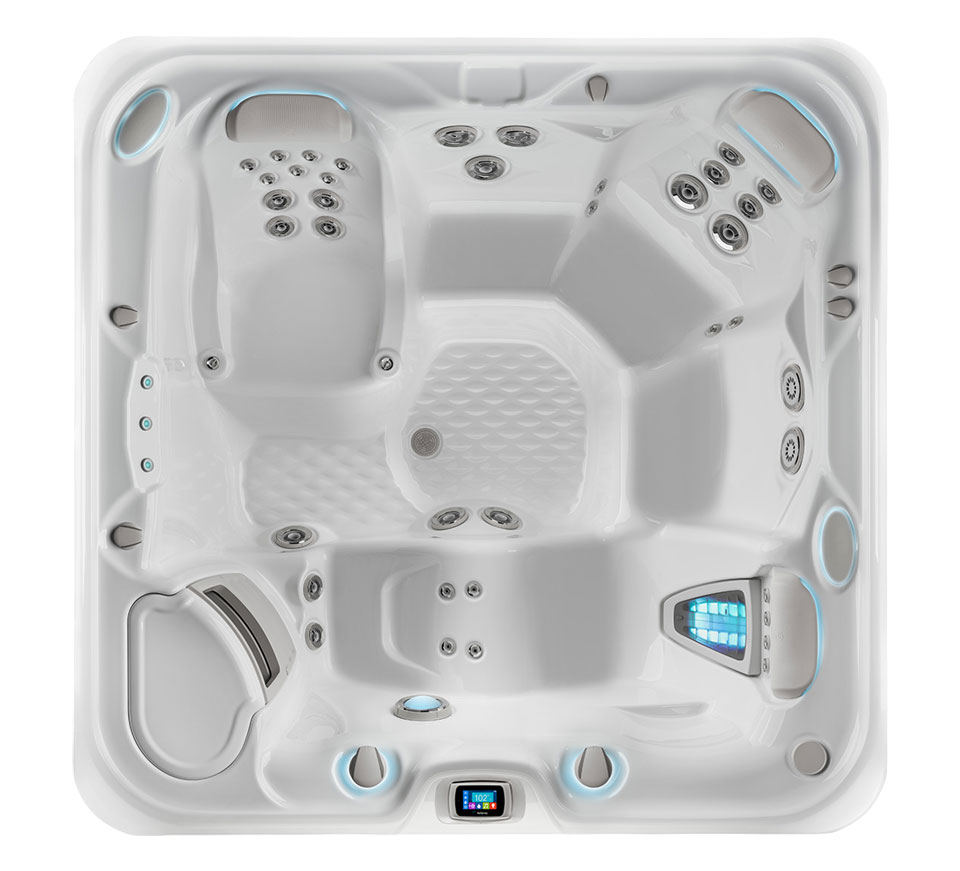

ENVOY®
5 adults

ROOMY LOUNGER

The generous footprint of the ENVOY makes this our largest luxury lounge spa with room for five.
The deep seats and full-body massage features include a Moto-Massage® DX jet and a captain’s chair with wrist jets.

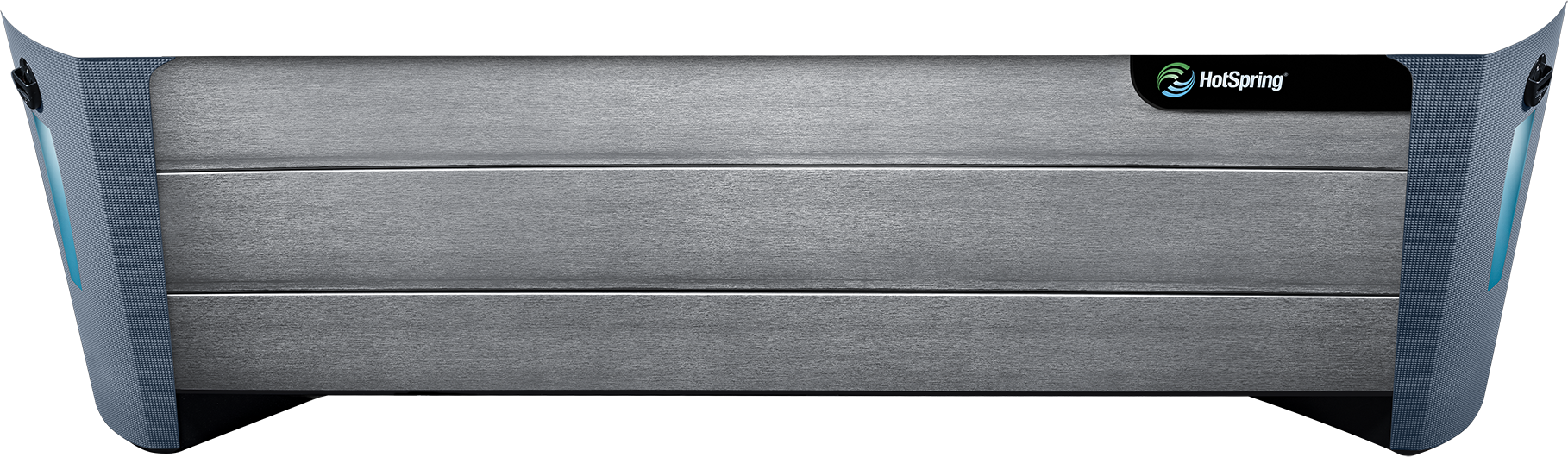

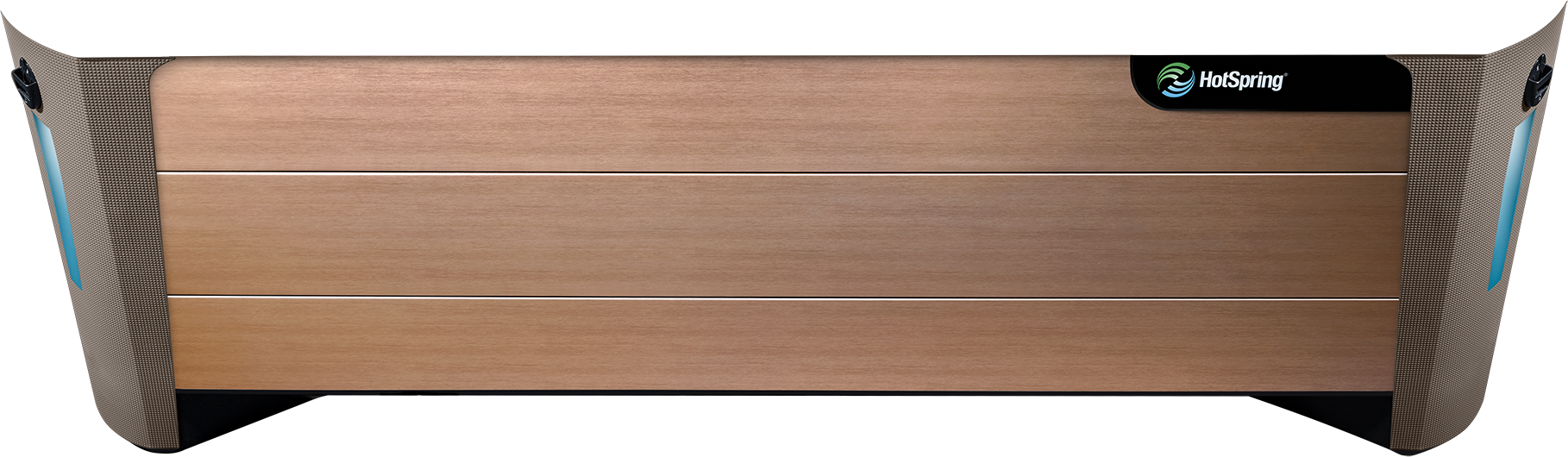

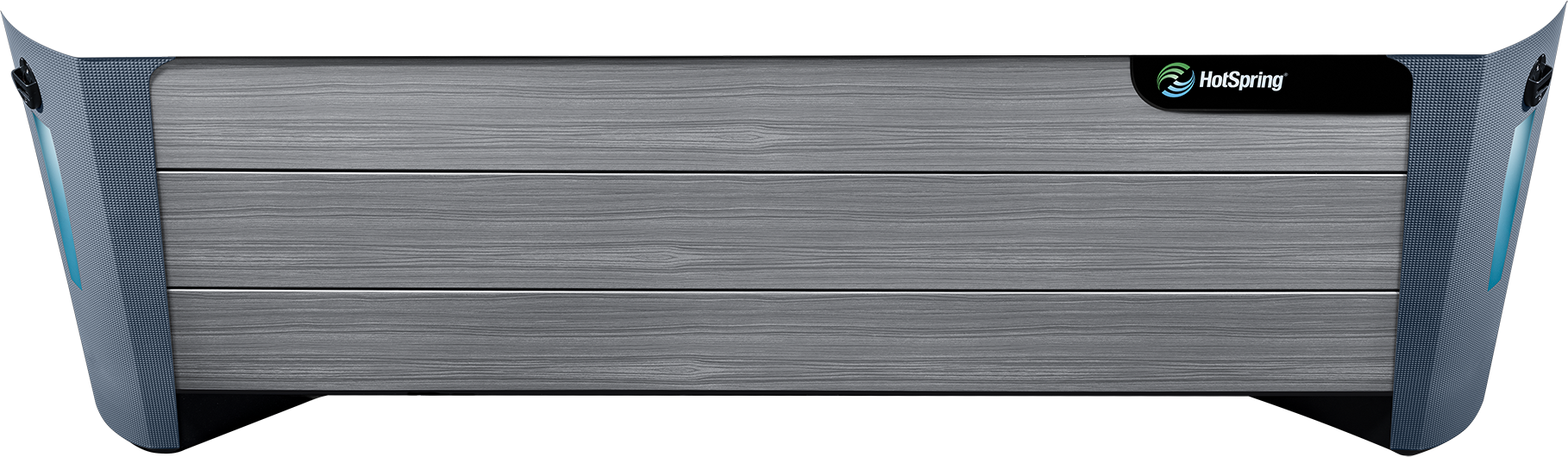

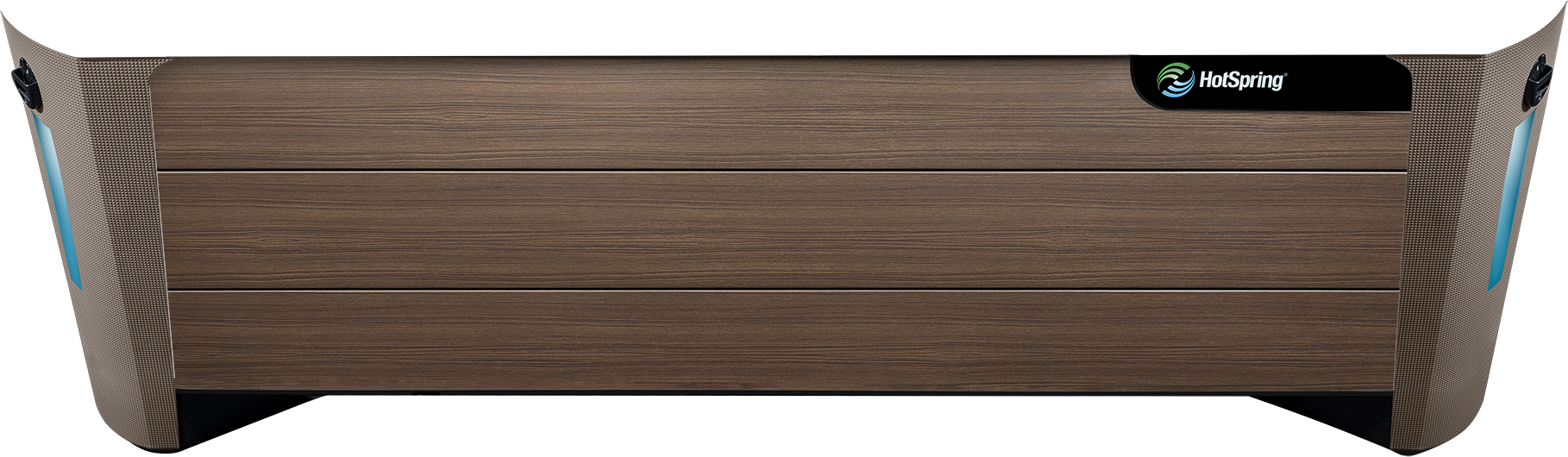

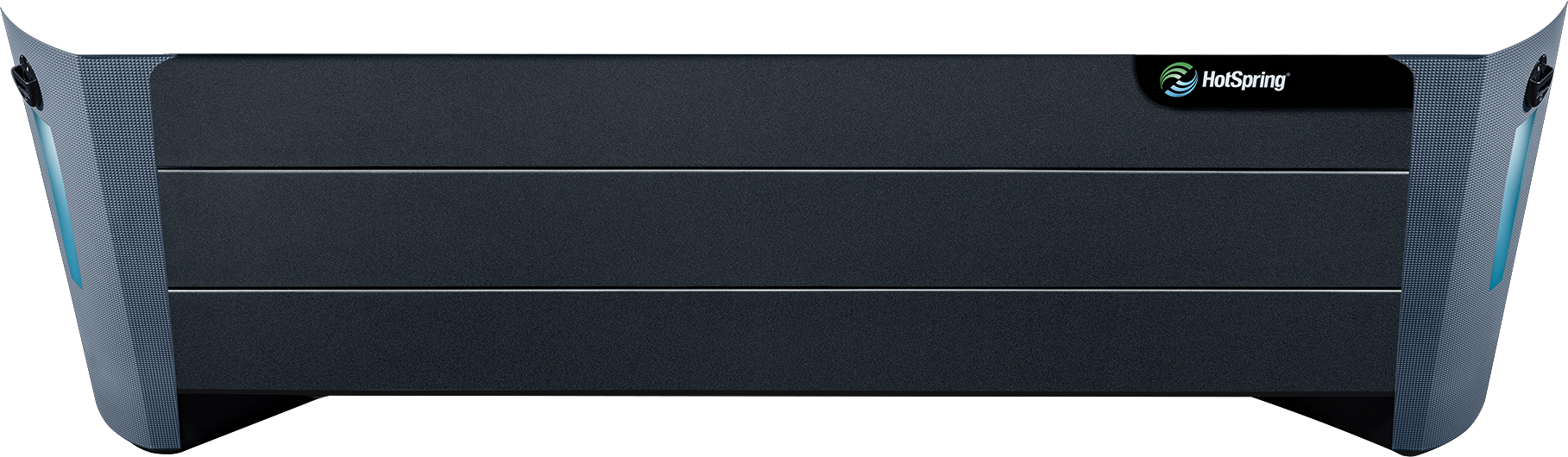

CABINET

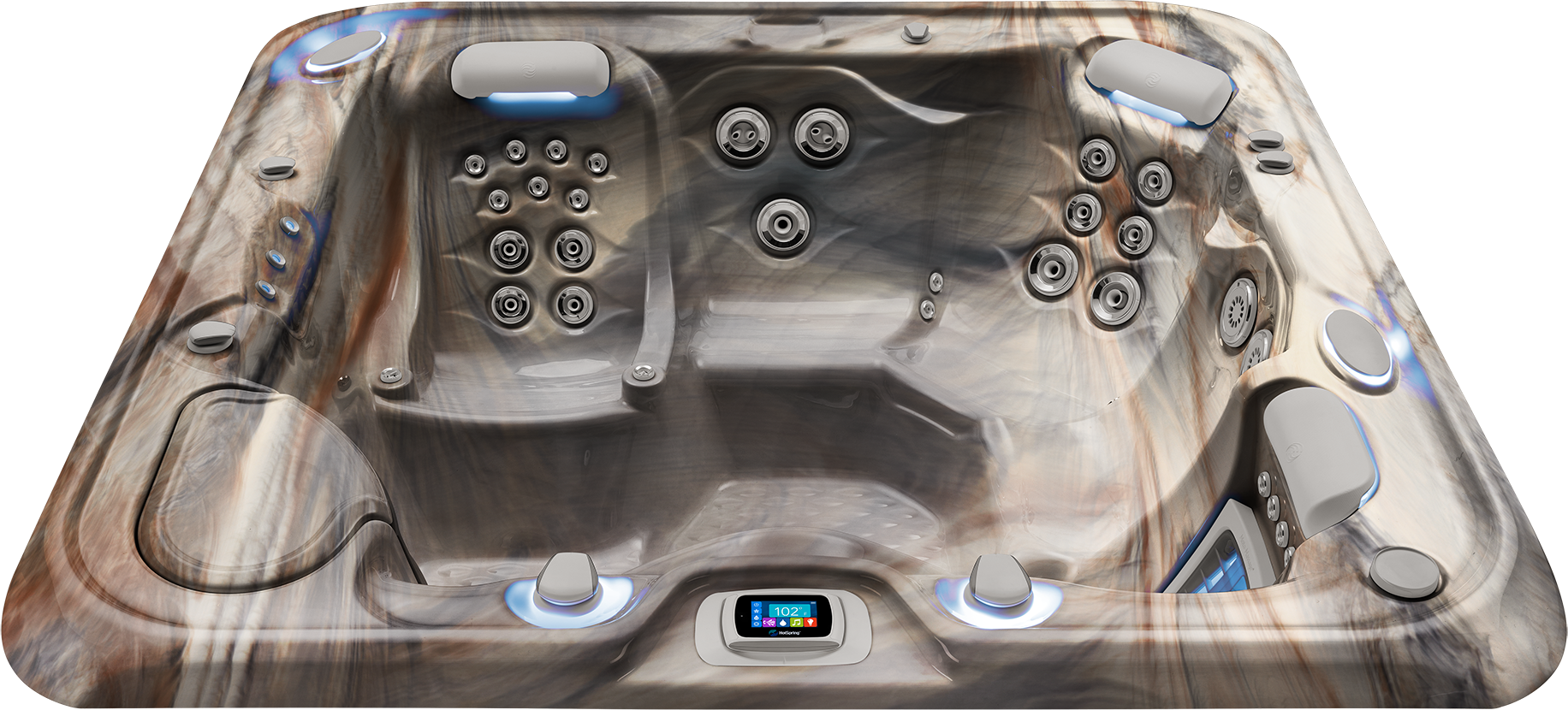

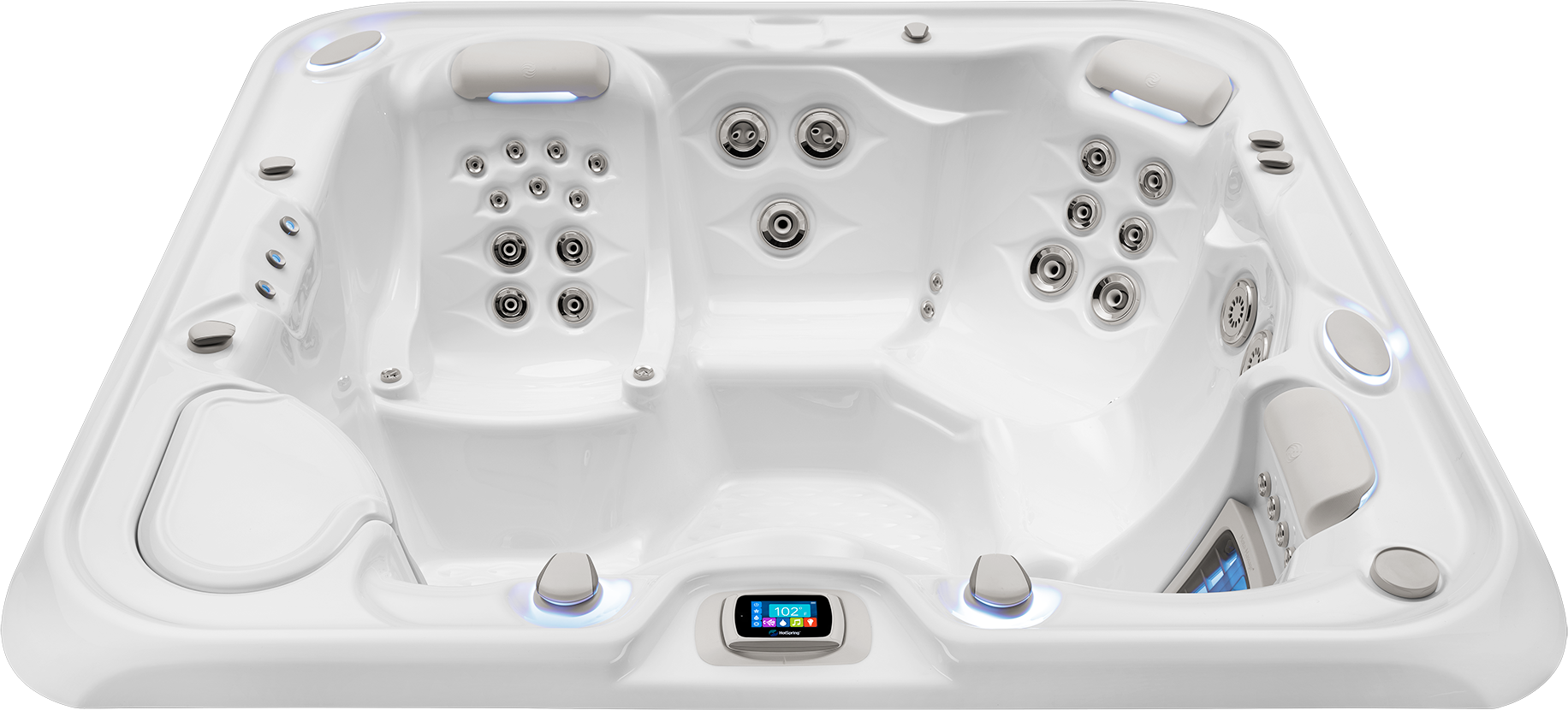

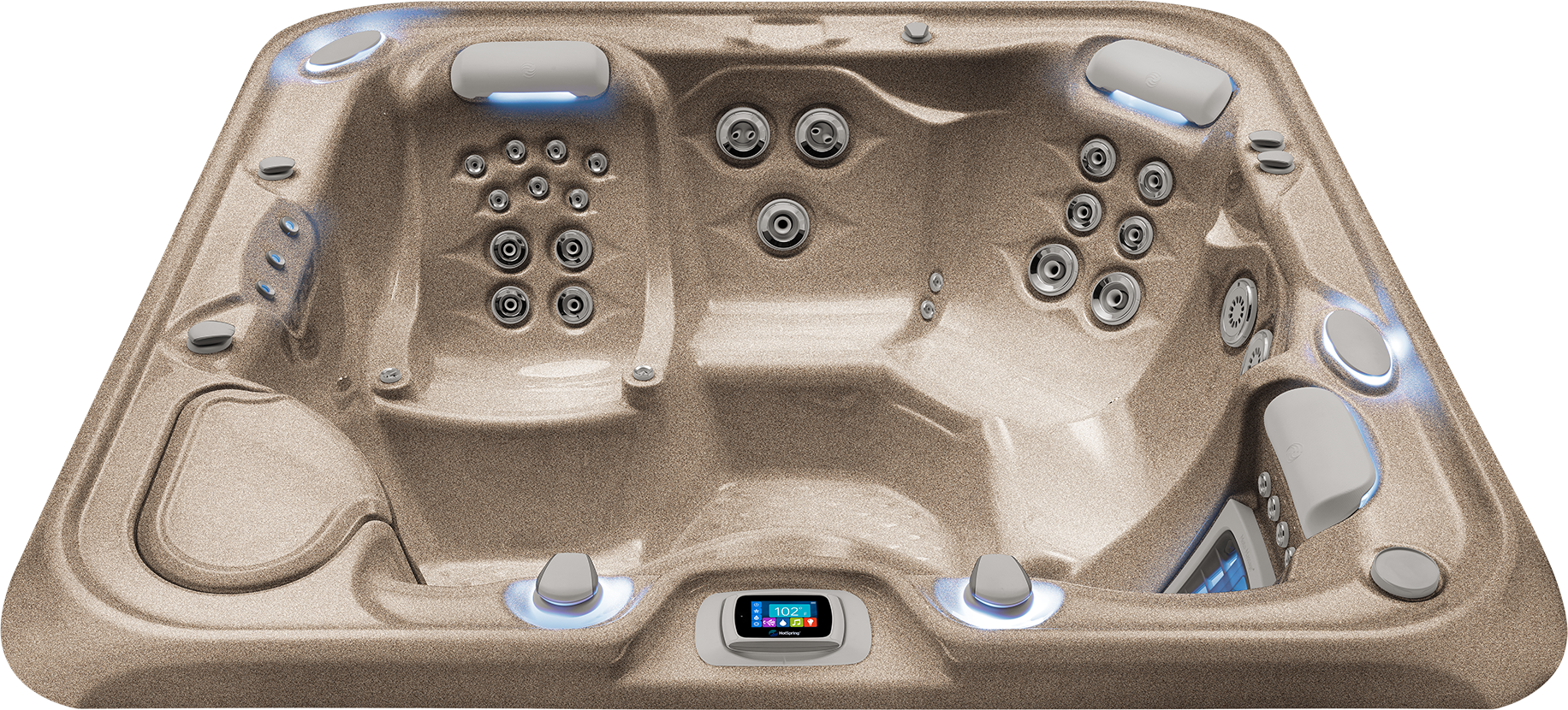

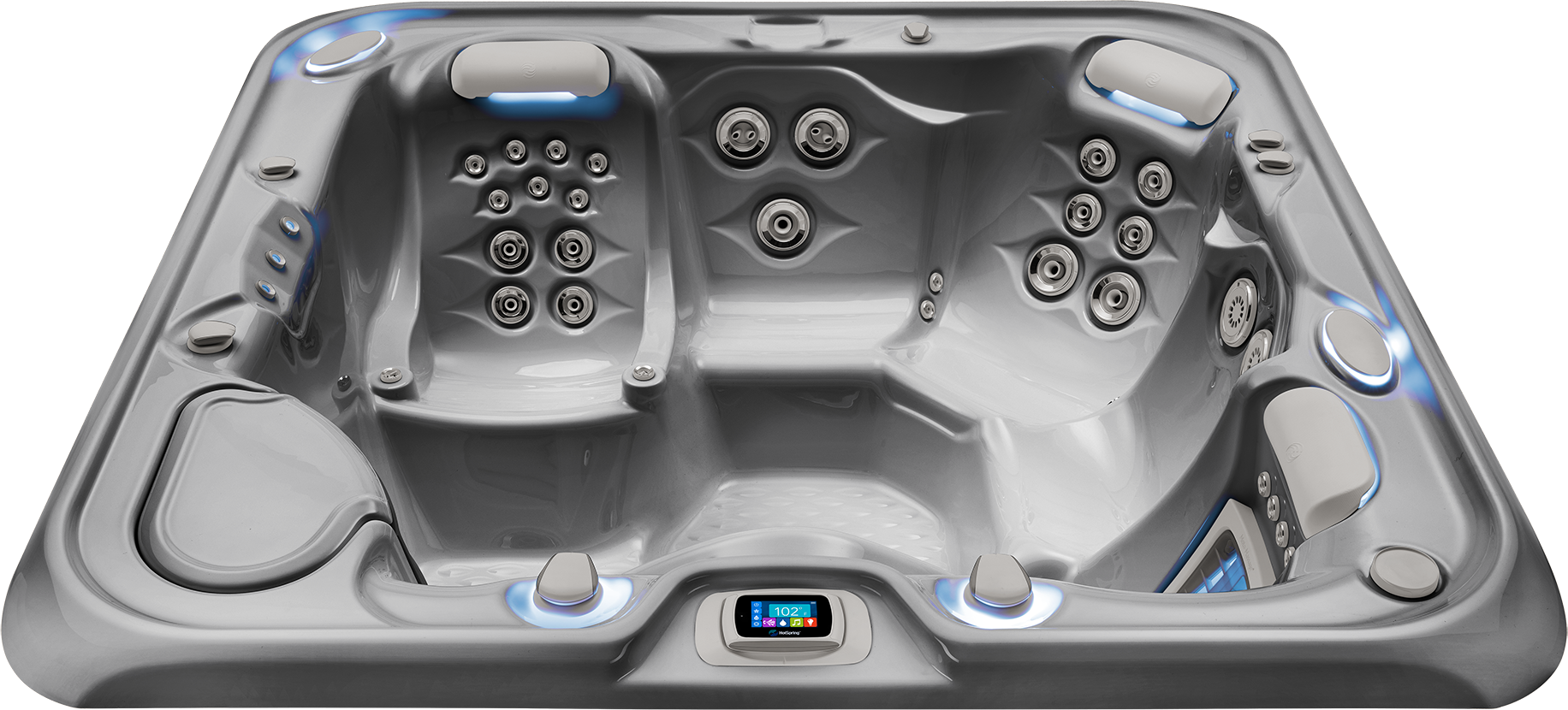

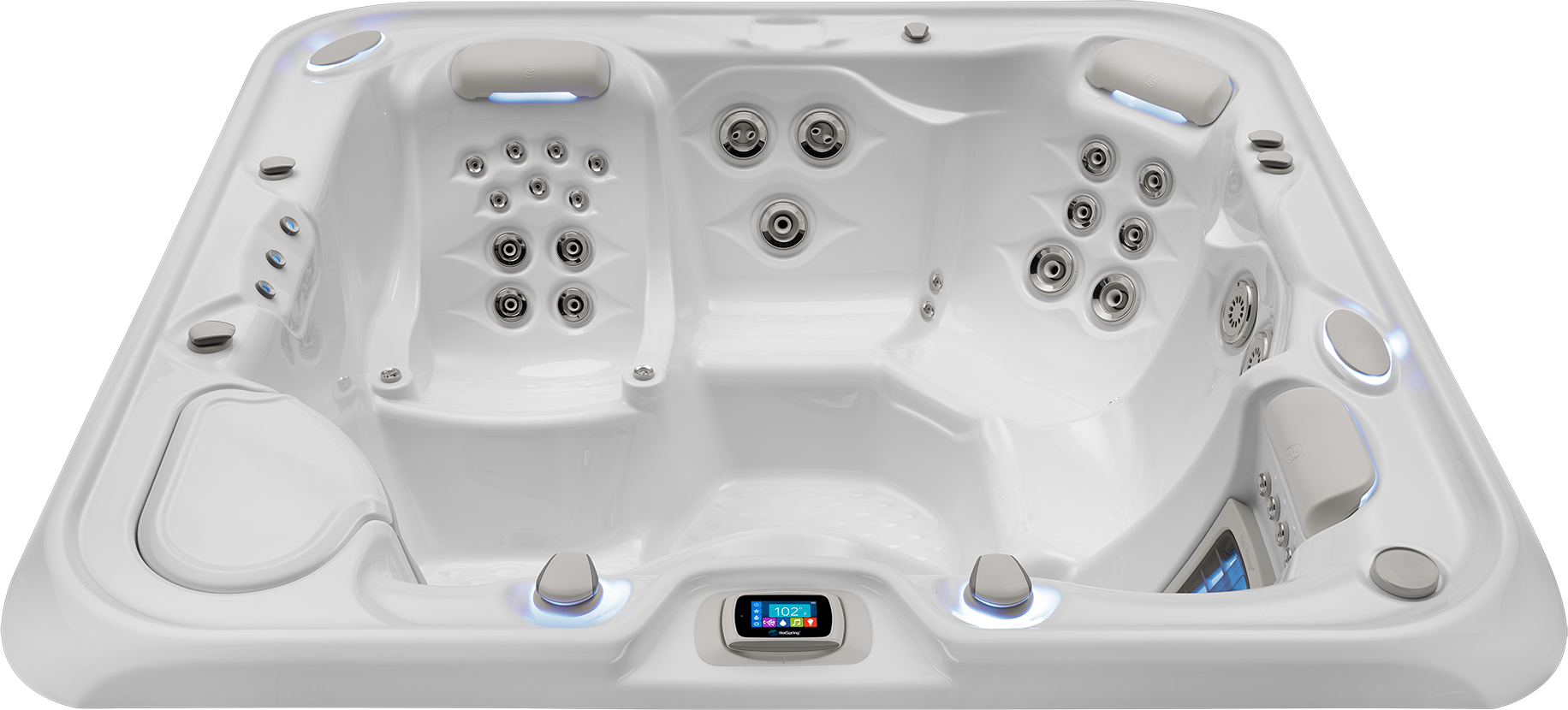

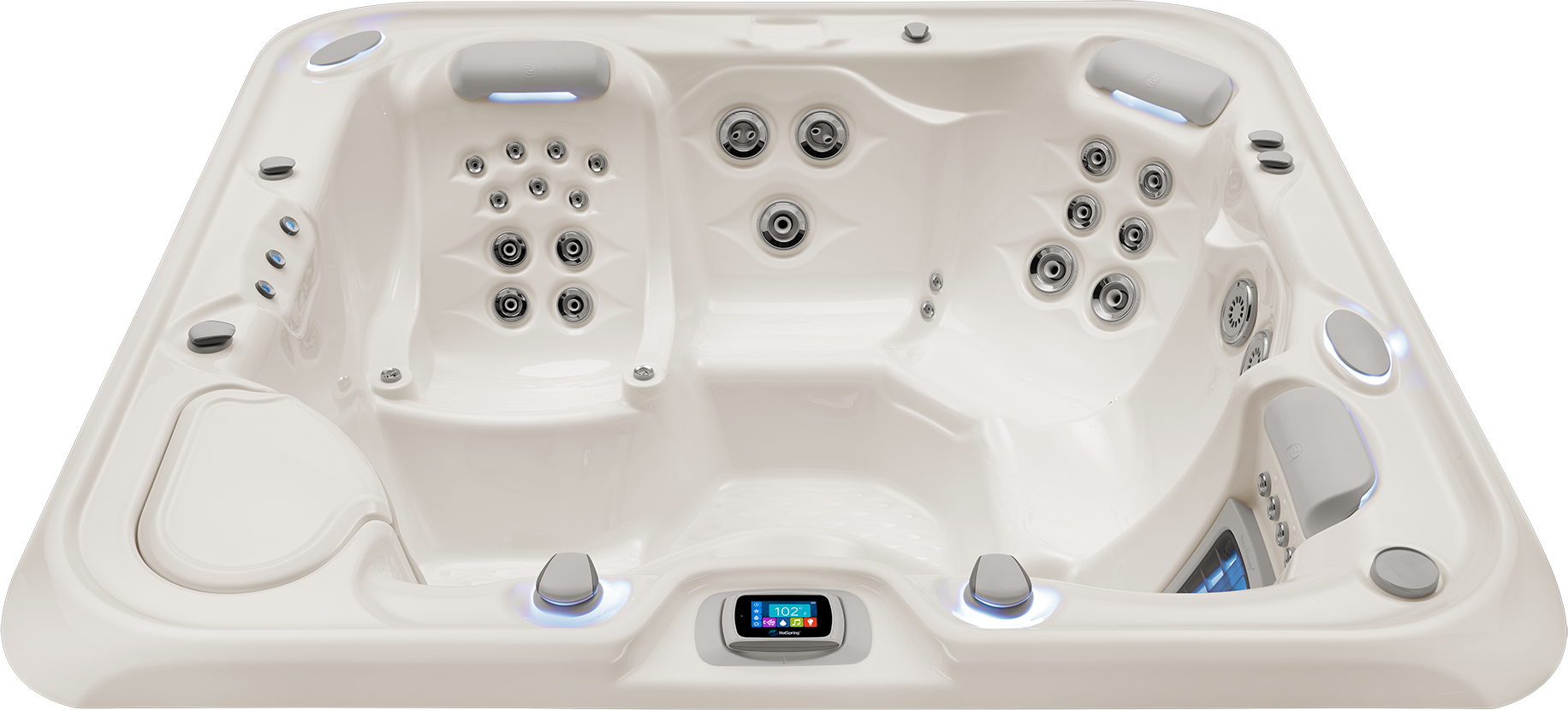

SHELL




HYDROMASSAGE

Revolutionary Jet Systems

Revolutionary Jet Systems

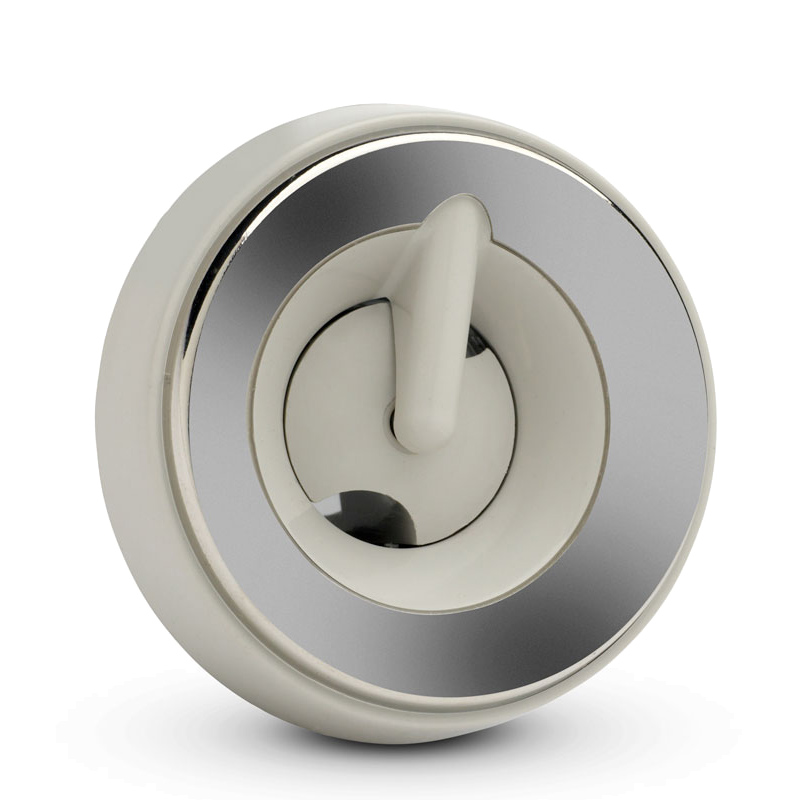

Each spa includes up to seven unique jet types and at least one Moto-Massage DX jet. But what makes Hot Spring® spas special is our 40-plus years of hydrotherapy expertise. The result is a distinctive jetting experience with the right amount of pressure and massage targeted for different muscle groups.

Revolutionary Jet Systems
ENERGY

Super Energy Efficient

Super Energy Efficient

Your spa will be there – hot and ready – when you need it. Our comprehensive EnergySmart™ system, uses a series of innovations to keep spa water at your desired temperature while keeping energy costs to a minimum.

Super Energy Efficient
WATER CARE

Crystal clear water

Cleaner Water Made Easy

Clear, clean water is essential for a great spa experience. Every spa in the Highlife Collection includes our best water care technologies and is built ready to use our proprietary FreshWater® Salt System to help ensure your water is at its best.

Crystal clear water

SPECS ENVOY®

Seating Capacity : 5 Adults
Dimensions :
7’9” x 7’7” x 38”/2.36m x 2.31m x .97m
Water Capacity : 390 gallons/1,475 liters
Weight: 830 lbs./375 kg dry; 4,960 lbs./2,250 kg filled*

Hot Tub Jets (43)
(w/ Stainless Steel Trim)

Water Features BellaFontana® with 3 illuminated arcs of water
Lighting System Luminescence® multi-colour four-zone
Control System IQ 2020® with wireless remote control 230v/50amp, 60Hz
Heater Titanium No-Fault®, 230v, 50 Hz, 1500w
Jet Pump 1 Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque
Circulation Pump SilentFlo 5000® for quiet, continuous filtration
Water Care Systems (Optional) Freshwater® Ozone System
  Freshwater® Salt System
Effective Filtration Area 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration
Vinyl Cover 3.5” to 2.5” tapered, 2 lb. density foam core, withhinge seal in Chocolate or Smoke
Electrical connection Single-phase 230V/20A or Three-phase 400V/13A
* Includes water and 5 adults weighing 175 lbs. each
